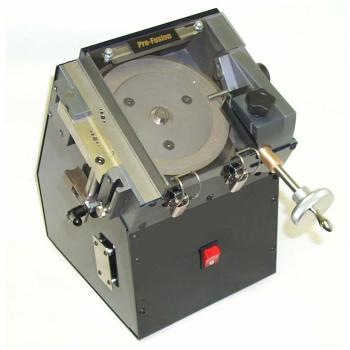

The Sharp Shooter™
Precision Tungsten Electrode Grinder
The Sharp Shooter™ uses an innovative tungsten grinding system to provide accuracy and safety in a compact, yet heavy-duty unit. Its unique design reduces the skill required to allow for easy grinding, flatting, and cutting in an enclosed work area. Dust extraction system options are available with HEPA filters in a quality work cabinet. If you are concerned about grinding thoriated tungsten electrodes, 4 versions of the Sharpshooter™ capture and contain ALL dust generated by the grinding of 2% Thoriated Tungsten. Please view Models TSS-3, TSS-3H, TSS-4 and TSS-4H for complete details.
Features
- Smart design streamlines electrode preparation
- Enclosed work area captures dust and protects operator
- Easy operation with electrode wand. No tools required
- No loose electrode guides that produce bad concentricity
- Optional dust extraction system with work cabinet
- Trade-in allowance for existing tungsten grinders
- Longitudinal diamond grinding--10º to 60º
- Diamond cutting as short as .235" (6mm)
- Tip flat diameter measurement scale
- Works with .040"-3/16" (1.0mm-4.8mm) diameters
- 1/4" capacity available on demand
- Repeatedly prepares the same tungsten geometry
- Rugged unit is ideal for high production
Government Agencies:
Please email or phone for our CAGE and National Stock Numbers.
The Sharpshooter™ is available in Europe from:
Qualitas Technology Ltd.
Tel: + 44 1733 555 830
Email: enquiries@qualitastechnology.co.uk
Want to Try, Before You Buy?
Would you like to see for yourself why the U S Air Force, The Marines, The Navy, GE Aircraft, Boeing, Pratt & Whitney and many others insist on the Sharpshooter™?
We are happy to arrange a one week trial in your facility. Please contact us by email or phone: 312.829.6770. When you contact us, please have at hand the size of the tungsten you want to test grind.
You'll be glad you tried the Sharpshooter™: The World's Finest Tungsten Electrode Grinder.
Dealer inquiries welcome.
Advantages
Most Precise
A universal electrode wand holds the electrode securely and at the closest possible proximity to the grinding contact point.
This produces concentric grinds not available on other tungsten grinders that use electrode guides/bushings with loose fit-up that
get even looser after use. The Sharp Shooter™ tungsten grinder has no problems with odd sized electrode diameters. Every electrode size is
gripped tightly to ensure precise tungsten sharpening.
Safest
The grinding and cutting areas are enclosed and provide a Plexiglas window for viewing. This keeps potentially harmful dust away from lungs, sparks away from eyes, and fingers free from injury. Safety officers are especially pleased with the design of this tungsten grinder. AWS Health & Safety Fact Sheet Number 27 Recommends: "Use a high-efficiency dust collection system to capture particles created during the grinding of electrodes or disturbed during housekeeping." Sharpshooter™ Models 3, 3H, 4 & 4H, completely capture and contain ALL dust generated by the grinding of tungsten electrodes.
Easiest to Use
Designed so that anyone can easily grind, flat, and cut tungsten electrodes with repeatable accuracy. There are no complicated
adjustments, special tool requirements, or difficult time consuming setups. The wand allows for one-touch grinding, flatting,
and cutting.
Purpose Built Tungsten Grinder
This is not a bench grinder with tooling attached as an after thought. It is custom designed to provide a rugged, dedicated
machine tool for accurately preparing tungsten electrodes.
Optional Dust Extraction System
All-welded steel work cabinet with quiet, integrated 1 micron dust extractor filtration system (HEPA 0.3 micron filter also available).
One switch turns on/off the grinder and dust extraction. After switching the system off, there are three seconds of additional power
provided to the dust extractor to clean the system. TSS-4 & TSS-4H are furnished with a rugged work cabinet to house the dust extractor and a shelf for your accessories.
 | |
| Dimensions | |
| Work surface 30" (76 CM) | |
| Overall Dimensions: 23" X 28" X 44"H (58.5 X 71 X 112 H) | |
| Weight: 167 lbs (76 Kg) | |
Feature Comparison Chart
| Models | Grinds & Polishes |
Cuts | 1.0 Micron Dust Extraction |
HEPA Dust Extraction |
Work Cabinet |
|---|---|---|---|---|---|
| TSS-1 | X | ||||
| TSS-2 | X | X | |||
| TSS-3 | X | X | X | ||
| TSS-3H | X | X | X | ||
| TSS-4 | X | X | X | X | |
| TSS-4H | X | X | X | X |
Step 1 - Set electrode stick out from wand to ensure consistently repeatable tip flat size.
|
Step 2 - Grind electrode with the perfect fit of the wand into its guide for quick and easy work.
|
Step 3 - Insert wand into cut-off fixture, move into enclosed cut-off wheel, flip open to get electrode. |
Technical Specifications (for stand-alone unit)
| Line Voltage: | Available in 115V, 208-230V Single phase, 230V 3 phase. |
| Hz: | 50 Hz or 60 Hz |
| Output Current: | 6.8 Full Load Amps at 115V, 3.4 at 230V with Automatic Overload Protection |
| Grinder Motor: | 1/2 Horsepower (UL Listed) |
| Weight: | 40 lbs. (18.2 kg) |
| Dimensions: | 13" (33 cm) H x 12.5" (31.75 cm) W x 13" (33 cm) D |
| Diameters: | Accommodates tungsten diameters from .040" to 3/16" (1.0mm to 4.8mm) 1/4" capacity available on demand |
