MK Weldheads

CopperHead / Mr. Micro

Robust Solutions for Orbital Weld Applications

CopperHeads are ideal cost savers for Sanitary & High Pressure Tube Systems.

The CopperHead series are our most cost effective and rugged in-place orbital weldheads offered in three models. The CopperHead models 5001 (1/8-1 inch OD), 5002 (1/4-2 inch OD) & 5003 (1/2-3 inch OD) each offer versatility and high-output production rates. Each CopperHead is rated at 150 amps pulsed.

The water-cooled, narrow profile weldheads are lightweight and easy to handle for those awkward welds with limited access.

Mr. Micro is a robust heavy-duty water-cooled tube and miniature fitting in-place orbital weldhead for high-purity tube systems.

The precision 1/8"-3/4" tube OD & miniature weld fitting collets, tool mounting side plates and clamping jaws are made of tool steel, nickel plated and each hardened for wear and toughness.

The high-output model 5000 Mr. Micro is rated at 100 Amps pulsed with production rates unequalled by other micro weldheads.

Features At A Glance

  • Narrow Profile / Water Cooled
  • Quality Rugged Construction
  • From 1/8" to 4-1/2" Tube OD's
  • Weld Controls build into Handle
  • CopperHead 150 Amps Pulsed
  • Mr. Micro 100 Amps Pulsed

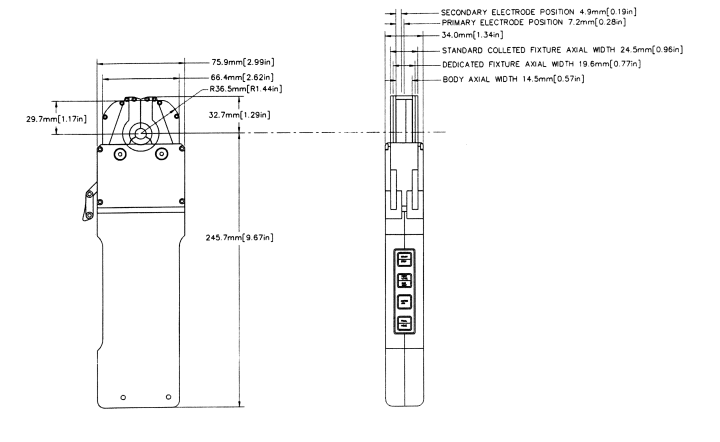

Mr. Micro Specifications

Click for larger image

CopperHead

MK Weldhead Specifications

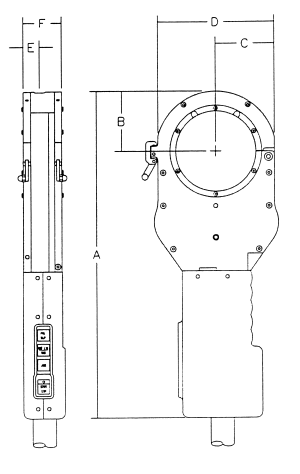

Dimensions References A B C D E F
Model 5001, CopperHead I 11.5" 1.5" 1.48" 2.96" 0.67" 1.62"
Model 5002, CopperHead II 13.2" 2.2" 2.05" 4.1" 0.67" 1.62"
Model 5003, CopperHead III 14.18" 2.62" 2.54" 5.08" 0.67" 1.62"
Model 6004, Weldhead & Cartridge 17.71" 4.11" 4.05" 8.04" 0.73" 1.76"

How To Order Weldheads & Generic Weldhead Collets

Contact MK Products or refer to your MK Parts Price List for specific tube size collet part numbers.

Provide weld-fitting manufacturers name & part number for weld fitting collets & special tooling

Weldhead Model Flush Collet P/N Extended Collet P/N Weldhead OD Range Specification
5000, Mr. Micro 623-4000, Specify Tube OD 624-4000, Specify Tube OD 1/8 - 3/4" inch 100 amps, pulsed Water Cooled
5001, CopperHead I 623-0110, Specify Tube OD 624-0110, Specify Tube OD 1/8 - 1 inch 150 amps, pulsed Water Cooled
5002, CopperHead II 623-0210, Specify Tube OD 624-0210, Specify Tube OD 1/4 - 2 inch 150 amps, pulsed Water Cooled
5003, CopperHead III 623-0310, Specify Tube OD 624-0310, Specify Tube OD 1/2 - 3 inch 150 amps, pulsed Water Cooled
6004, Weldhead & Cartridge 623-0410, Specify Tube OD 624-0410, Specify Tube OD 1 - 4 1/2 inch 150 amps, pulsed Water Cooled
Note: Model 5000 weldhead collet sets are defined as three 120° segments. Model 5001 - 5003 and model 6004 weldhead collet sets are defined as top and bottom halves. Typically two sets of collets are required for each weldhead, per tube Diameter.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
